DS-20E Walk-Behind Saw (Downcut) – 20″ Blade, Electric 7.5HP, 230V Three Phase

$4,942.00

1 in stock

SKU: 30300 Category:

Description

NEW 20″ WALK-BEHIND SAW – DOWNCUT

Everything you love about the DS-18 with MORE blade capacity and MORE versatility!

Model: DS-20E
BLADE NOT INCLUDED

  • 20″ Blade Capacity
  • Max Cut Depth: 7.75″
  • NEW & Improved throttle cable
  • Easy turn crank, for lowering and raising blades in and out of cut
  • Heavy-Duty Anti-Vibration engine mount!
  • Screw boot belt tensioner prevents frame damage
  • 7-gauge steel blade guard with welded protective segment flap
  • Heavy-Duty lifting bail for easy loading and unloading
  • 7.5HP, 230V Three Phase electric motor
  • Heavy-Duty 7-gauge steel laser cut frame
  • Large screw-type depth control
  • Wide-T handles with rubber grips
  • Solid-Steel lifting handles
  • High quality molded rubber wheels
  •  Dual arbor available for 2 saw cuts
  • Pro Tip: EDCO recommends to use step cutting when using the saws and not to burry the blade to cut all at once
IDEAL FOR…
  • Short-run slab cutting
  • Contraction joints
  • Patch repairs in asphalt
  • Traffic loop installation
  • Trenching

EDCOed Training Modules:

Visit EDCOed.com and get training for machines, tooling, how to operate, and maintenance.

Additional information

Motor Type

Electric

Horsepower

7.5 HP

Volt

230 V 3-Phase

You may also like…

  • Sale!

    Water Tank Assembly (DS-18, DS-20, KL-18)

    Original price was: $345.00.Current price is: $310.50.
    Add to cart
  • Placeholder

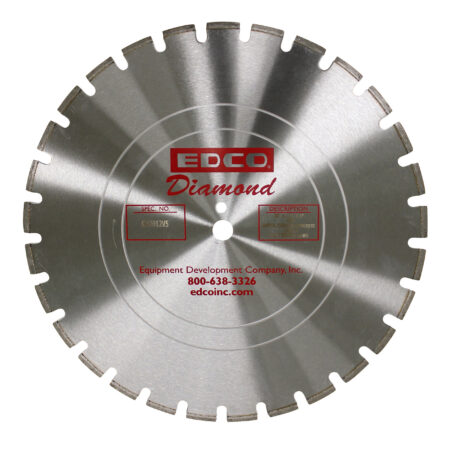

    20” x .125 x 1” Diamond Blade for Asphalt/Green Concrete

    $295.00
    Add to cart
  • Placeholder

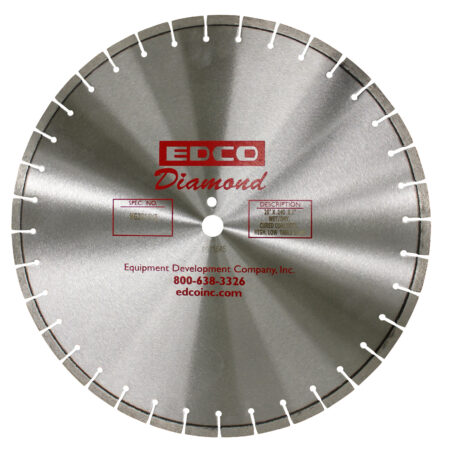

    20” x .140 x 1” Diamond Blade for General Concrete
